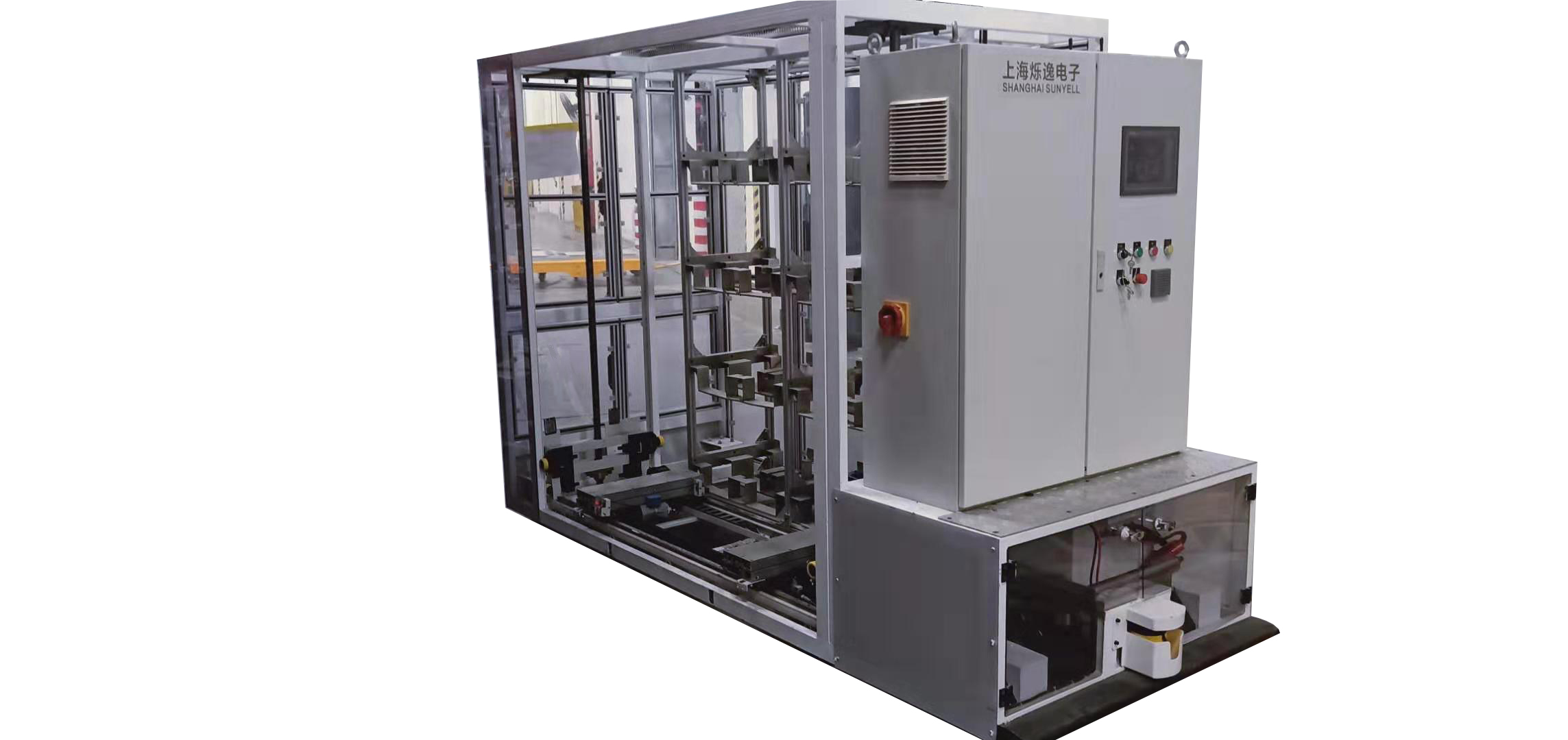

Small parts warehouse AGV

Performance

The product is the combination of intelligent AGV and small-scale vertical warehouse. According to the principle of vertical warehouse stacker, it is connected with WMS / MES and other upper systems to establish an internal independent database management system. Use order / empty box pull mode to deliver materials, and complete the one-way pick-up and delivery task of diversified orders. Using double forks and single control to run different sizes of materials can adapt to more than 5 kinds of materials at the same time. The whole process automatic digital management can realize the complex order automatic distribution, greatly reducing the labor cost and error rate.

Parameters

  • Rated Load Total load 1T
  • Single Plastic Box Load 0-15kg
  • Running Speed 0-60m/min
  • Driving Form Steering wheel
  • Navigation Mode Magnetic or Colored Tape/QR Code/Laser/SMAP
  • Climbing Ability ≤3°
  • Control Mode PLC
  • Turning Radius 3000mm
  • Positioning Accuracy ±5mm
  • Safety Protection Non contact protection + physical protection
